1. Introduction

The Virtual Router Redundancy Protocol (VRRP) is a networking protocol designed to increase the availability of default gateways servicing hosts on the same subnet. It provides redundancy by allowing multiple routers to share a virtual IP address, ensuring high availability and fault tolerance. VRRP is defined in RFC 5798 (VRRPv3) and is widely used in enterprise and data center networks.

This document provides a detailed explanation of VRRP, its operation, configuration, and use cases, suitable for inclusion in a GitHub repository.

2. Purpose of VRRP

VRRP eliminates the single point of failure in a network by enabling a group of routers to act as a single virtual router. If the primary router (Master) fails, a backup router seamlessly takes over, minimizing downtime and ensuring continuous network connectivity.

Key Objectives:

• Provide high availability for default gateways.
• Ensure automatic failover in case of router failure.
• Minimize packet loss during failover.
• Support load sharing in advanced implementations.

3. How VRRP Works

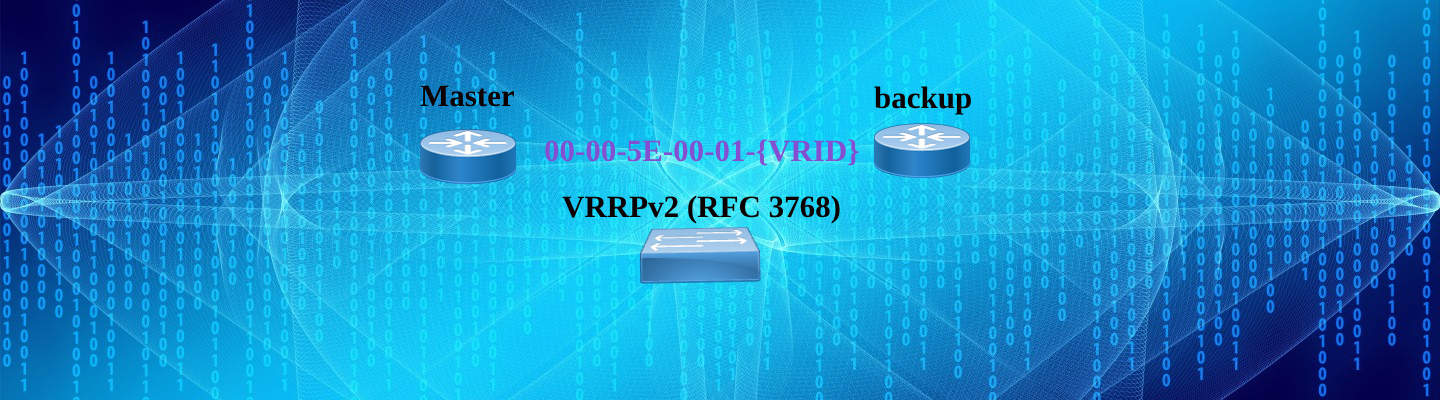

VRRP operates by grouping multiple physical routers into a single virtual router. The virtual router is assigned a virtual IP address and a virtual MAC address, which are used by hosts as their default gateway.

Core Components:

• VRRP Group: A set of routers participating in VRRP, identified by a Virtual Router Identifier (VRID) (1-255).
• Master Router: The router currently responsible for forwarding traffic sent to the virtual IP address.
• Backup Router(s): Routers that are ready to take over if the Master fails.
• Virtual IP Address: The IP address shared by the VRRP group, used as the default gateway for hosts.
• Virtual MAC Address: A standardized MAC address (e.g., 00-00-5E-00-01-{VRID} for IPv4) associated with the virtual IP.
• Priority: A value (1-255) assigned to each router to determine which becomes the Master. Higher priority wins; default is 100.
• Preemption: A setting that allows a higher-priority router to take over as Master when it becomes available.

Operational Workflow:

1. Election Process:
   • Routers in the VRRP group exchange VRRP advertisements (multicast packets) to elect the Master.
   • The router with the highest priority becomes the Master. If priorities are equal, the router with the highest IP address wins.
   • The Master router periodically sends advertisements (default interval: 1 second) to inform Backup routers of its status.
2. Advertisement Mechanism:
   • Advertisements are sent to the multicast address 224.0.0.18 (IPv4) or FF02::12 (IPv6).
   • If the Backup routers stop receiving advertisements for a defined period (e.g., 3x advertisement interval + skew time), they assume the Master has failed.
3. Failover:
   • A Backup router with the highest priority transitions to the Master state.
   • The new Master starts forwarding traffic and sends VRRP advertisements.
   • Hosts continue using the same virtual IP and MAC address, unaware of the failover.
4. Preemption:
   • If a higher-priority router comes online, it can preempt the current Master (if preemption is enabled) and take over.

4. VRRP Versions

VRRPv2 (RFC 3768): Supports IPv4 only, with basic redundancy features.

VRRPv3 (RFC 5798): Supports both IPv4 and IPv6, with faster failover (sub-second advertisement intervals) and improved scalability.

Key Differences:

5. VRRP Packet Structure

VRRP advertisements are encapsulated in IP packets and sent via multicast. The packet format includes:

• Version: VRRP version (2 or 3).
• Type: Advertisement (value: 1).
• Virtual Router ID (VRID): Identifies the VRRP group (1-255).
• Priority: Router’s priority (1-255; 0 indicates the Master is shutting down).
• Advertisement Interval: Time between advertisements (in seconds or centiseconds for VRRPv3).
• Checksum: Ensures packet integrity.
• IP Address(es): Virtual IP address(es) associated with the VRRP group.
• Authentication Data (VRRPv2 only): Optional for basic security.

6. Configuration Example

Below is an example of configuring VRRP on two Cisco routers for a virtual IP address 192.168.1.1 with VRID 10.

Router 1 (Master, Priority 150):

interface GigabitEthernet0/0
 ip address 192.168.1.2 255.255.255.0
 vrrp 10 ip 192.168.1.1
 vrrp 10 priority 150
 vrrp 10 preempt


Router 2 (Backup, Priority 100):

interface GigabitEthernet0/0
 ip address 192.168.1.3 255.255.255.0
 vrrp 10 ip 192.168.1.1
 vrrp 10 priority 100
 vrrp 10 preempt


Explanation:

• Both routers share the virtual IP 192.168.1.1 for VRID 10.
• Router 1 has a higher priority (150) and becomes the Master.
• Preemption is enabled, allowing Router 1 to reclaim the Master role if it recovers.
• Hosts on the subnet use 192.168.1.1 as their default gateway.

7. Use Cases

• High Availability for Default Gateways: Ensures continuous connectivity for hosts in LAN environments.
• Data Center Redundancy: Provides failover for critical services in server farms.
• Load Sharing: Multiple VRRP groups can distribute traffic across routers.
• Disaster Recovery: Maintains network uptime during router maintenance or failure.

8. Advantages

• Simplicity: Easy to configure and deploy.
• Transparency: Hosts are unaware of failover events.
• Scalability: Supports multiple VRRP groups on the same interface.
• Interoperability: Standardized protocol supported by most vendors (Cisco, Juniper, etc.).

9. Limitations

• No Load Balancing: Only the Master router forwards traffic (unless multiple VRRP groups are used).
• Limited Security: VRRPv3 removes authentication, relying on external mechanisms like IPsec.
• IPv6 Support: Requires VRRPv3, which may not be supported on older devices.
• Complex Troubleshooting: Misconfigurations (e.g., mismatched intervals) can cause flapping.

10. Troubleshooting VRRP

Common issues and debugging steps:

• Master Election Failure:
  • Verify priority settings and IP address ownership.
  • Check for mismatched VRID or virtual IP configurations.
• Flapping:
  • Ensure consistent advertisement intervals across routers.
  • Check for network congestion dropping advertisements.
• Debug Commands (Cisco example):

  show vrrp
  debug vrrp all


11. Best Practices

• Use Meaningful Priorities: Assign higher adage to more capable routers.
• Enable Preemption: Allows recovery of the preferred Master after failure.
• Monitor VRRP State: Use SNMP or syslog for real-time alerts.
• Secure VRRP: Use ACLs to restrict VRRP multicast traffic.
• Test Failover: Periodically simulate failures to validate configuration.

12. Comparison with Similar Protocols

13. Conclusion

VRRP is a robust and widely adopted protocol for ensuring high availability in IP networks. By providing seamless failover and redundancy, it is an essential tool for network engineers building resilient architectures. This document serves as a comprehensive guide for understanding, configuring, and troubleshooting VRRP in production environments.

14. References

• RFC 5798: Virtual Router Redundancy Protocol (VRRP) Version 3.
• RFC 3768: Virtual Router Redundancy Protocol (VRRP) Version 2.
• Cisco VRRP Configuration Guide: Cisco Documentation.
• IETF VRRP Working Group: IETF VRRP.
